SOLD IN PAIRS

Rim W13 X 24 – Variable Track with Ring

Color: Landini Grey

Number of holes: 6 holes

Center bore diameter: 285 mm

Hub: 6 holes øC19 on 325 mm PCD (Pitch Circle Diameter)

Offset: +5 (Positive 5)

FOR TYRES: 14.9 – 15.5 – 16.5 – 380/85 – 420/75R24

Rim W14 X 24 – Variable Track with Ring

Color: CLAAS Red

Number of holes: 8 holes

Center bore diameter: 221 mm

Hub: 8 holes øC22 on 275 mm PCD (Pitch Circle Diameter)

Offset: -34 (Negative 34)

Rim W15 X 28 – Variable Track with Clamp

Color: JD Yellow

Number of holes: 8 holes

Center bore diameter: 152.4 mm

Hub: 8 holes øC20 on 203.2 mm PCD (Pitch Circle Diameter)

Offset: +126 (Positive 126)

For Tyres: 16.9 – 17.5 – 420/85 – 480/70 – 480/65R28

Jante W12 X 28 - Voie Variable à Couronne

Couleur : JAUNE JD

Nombres de trous : 8 Trous

ø Alésage : 221

Moyeu : 8 Trous øC22 sur entraxe 275

Déport : Négatif 28

Pour Pneus : 13.6 - 14.9 - 340/85 - 380/70 - 380/85 - 420/70R 28

Jante W12 X 28 - Voie Variable à Couronne

Couleur : JAUNE JD

Nombres de trous : 8 Trous

ø Alésage : 221

Moyeu : 8 Trous øC22 sur entraxe 275

Déport : Négatif 77

Pour Pneus : 13.6 - 14.9 - 380/70 - 420/70 - 340/85 - 380/85R 28

Jante W10 X 24 - Voie Variable à Couronne

Couleur : JAUNE JD

Nombres de trous : 8 Trous

ø Alésage : 221

Moyeu : 8 Trous øC21 sur entraxe 275

Déport : Négatif 32

Pour Pneus : 11.2 - 12.4 - 320/70 - 320/85R 24

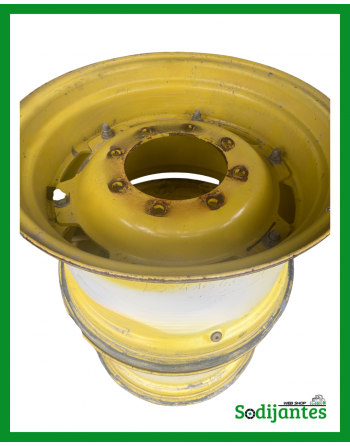

Rim W15 X 24 – Variable Track with Ring

Color: JD Yellow

Number of holes: 8 holes

Center bore diameter: 221 mm

Hub: 8 holes øC21 on 275 mm PCD (Pitch Circle Diameter)

Offset: +70 (Positive 70)

For Tyres: 16.9 – 17.5 – 540/65 – 720/65 – 495/70 – 500/75R24

Rim W18 X 28 – Variable Track with Ring

Color: Valtra Grey

Number of holes: 10 holes

Center bore diameter: 281 mm

Hub: 10 holes øC24 on 335 mm PCD (Pitch Circle Diameter)

Offset: -75 (Negative 75)

For Tyres: 520/60 – 540/65 – 580/65 – 600/65R28

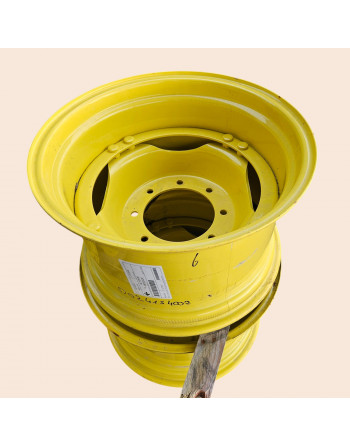

Rim W15 X 24 – Variable Track with Ring

Color: JD Yellow

Number of holes: 8 holes

Center bore diameter: 221 mm

Hub: 8 holes øC20 on 275 mm PCD (Pitch Circle Diameter)

Offset: +10 (Positive 10)

For Tyres: 16.9 – 17.5 – 540/65 – 720/65 – 495/70 – 500/75R24

W18 X 28 Rim - Variable Track with Flange

Color: GREY MF

Number of Holes: 10 Holes

Bore Diameter: 281 mm

Hub: 10 Holes øC24 on 335 mm bolt circle

Offset: Negative 75

For Tires: 520/60 - 540/65 - 580/65 - 600/65R 28

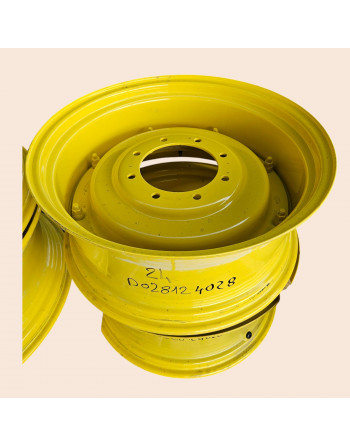

TW15 X 38 Rim - Variable Track with Flange

Color: JD Yellow

Number of Holes: 8 Holes

Bore Diameter: 221 mm

Hub: 8 Holes øC21 on 275 mm bolt circle

Offset: Negative 70

For Tires: 16.9 - 480/70 - 420/85R 38

TW15 X 38 Rim - Variable Track with Flange

Color: JD Yellow

Number of Holes: 8 Holes

Bore Diameter: 221 mm

Hub: 8 Holes øC21 on 275 mm bolt circle

Offset: Negative 70

For Tires: 16.9 - 480/70 - 420/85R 38
